XTAR responded to the ever-increasing demand for three-bay chargers that are compact enough to take on the road, very easy to use, affordable, flexible and environmentally friendly.
The three-bay Li-ion charger has been developed as the already very popular MC series. Compact dimensions and a weight of only 94 g also make the Xtar MC3 ideal for travel.

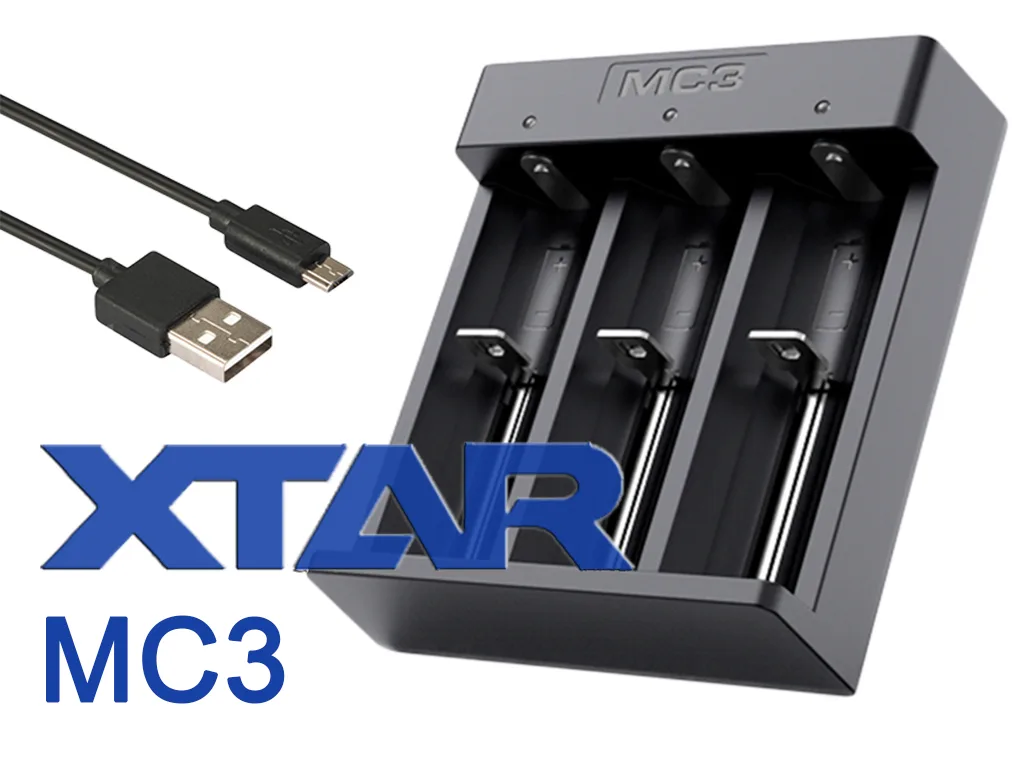

Xtar MC3 – Three-bay Li-Ion travel charger.
Powered by Micro-USB, a power adapter is not included for the sake of the environment and to save costs Connectable to any 5V USB port.
5V USB ports are already available in every household besides Smartphone USB chargers, PCs, power banks, laptops and car USB adapters.
The 3 LEDs provide information about the charging process. In addition to reverse polarity protection, short-circuit and overload/overcharge protection, the MC3 has Soft-Start to charge the batteries gently.
The following lithium-ion battery types can be charged with the Xtar MC3 :
LiIon IMR, INR, ICR (3.6/3.7V nominal) up to 4.2V in sizes: 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 22500, 22650, 25500, 26500, 26650.
Xtar MC4 Product information:
- Three separate charging bays, charges 1 – 3 batteries at the same time, each charging bay charges and monitors individually and independently
- Also suitable for 20700 / 21700 batteries (without integrated protection electronics max. 71mm)
- Charging current max. 2A per slot, total power 3A with 2.1A USB power supply unit
- Multi-coloured status LED`s provide information about the charging status
- Optimised charging programme according to CC/CV procedure for IMR batteries and reactivation of Li-ion batteries
- Automatic charge stop after completion of the charging process
- Reverse polarity protection, overcharge protection, overload protection and temperature monitoring, flame-retardant ABS housing
- CE, RoHS & FCC certified
Homepage of the manufacturer:Xtar MC3 Charger on Xtar.cc
Scope of delivery: Charger, Micro-USB cable, Operating instructions in German, English, Italian, French, Russian, Polish, Turkish
Technical Data
| Input | DC 5V 3A via MicroUSB |
| Charging current | 1* 2A; 2* 1.5A or 3* 1A |
| Charging end voltage | 4.20V +/- 0.05V |
| Termination current | = 120mA |
| Operating temperature | 0 °C – 40 °C |
| Dimensions | 100 x 87 x 30 mm |
| Weight | 94 g without accessories |
