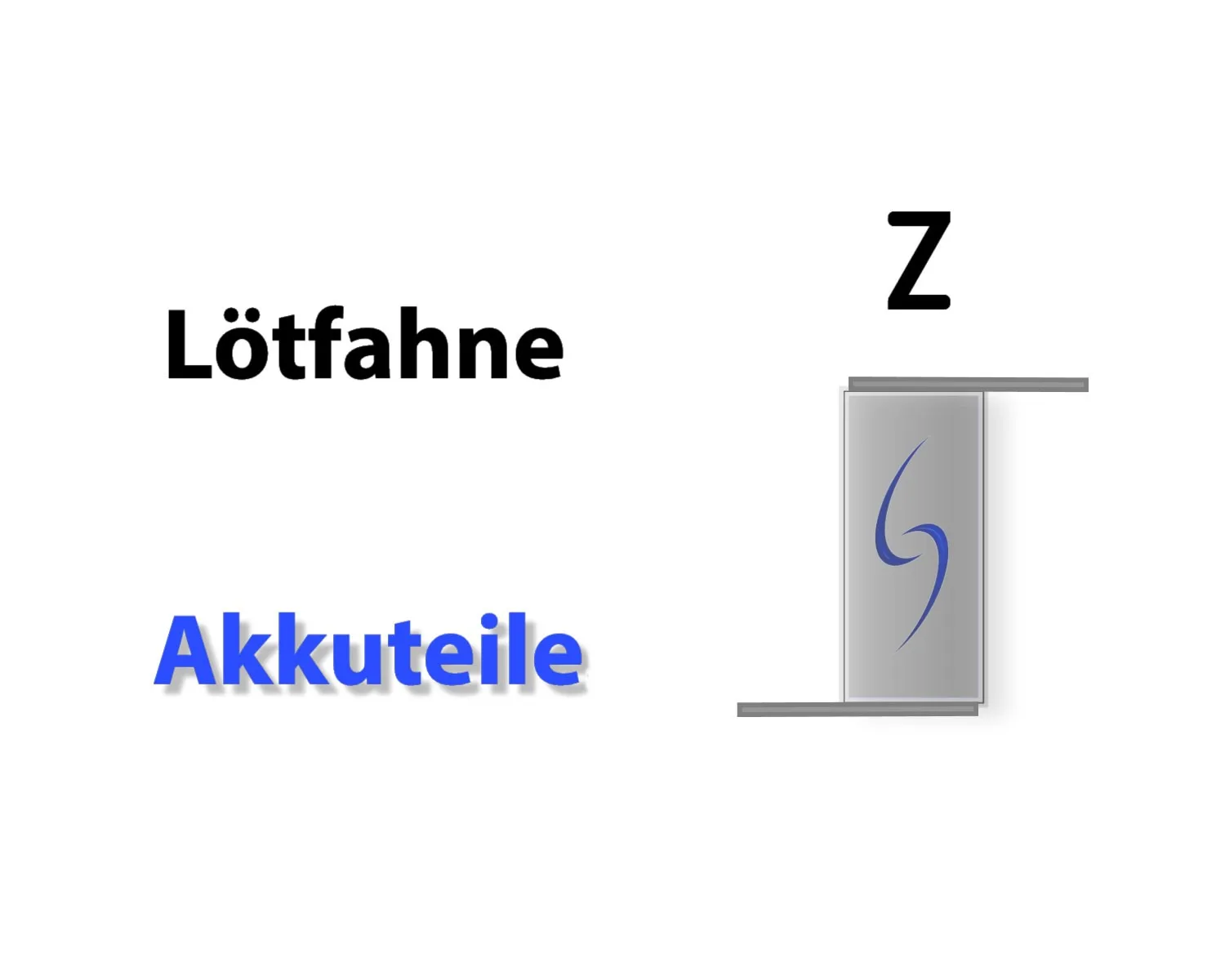

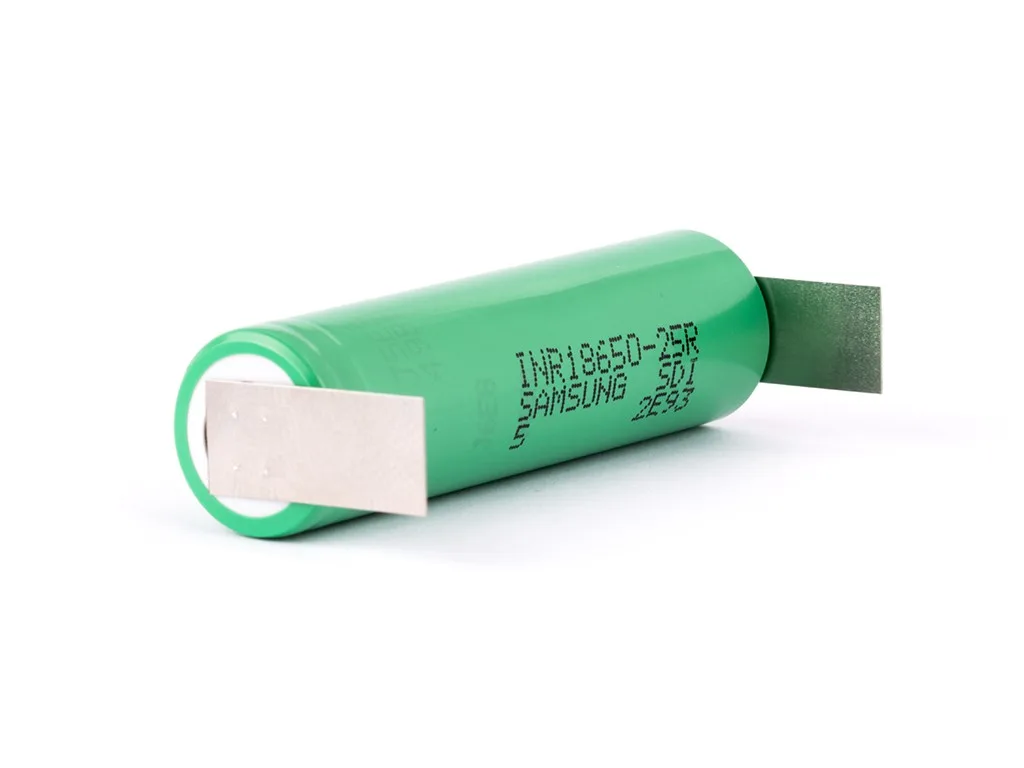

Best suited for tools, industry, power tools, cordless hammer drills and model making. The Hilumin solder tag is spot-welded and has the dimensions: width: 7 mm, length: 25 mm.
These items are custom made and are not returnable!
Lithium cells may only be operated with protective electronics!
Please note that lithium cells may only be used by competent persons.
Incorrect handling or short-circuiting can lead to fire or explosion.
Lithium-ion batteries are thermally stable and are not subject to any memory effect.
They work on the basis of lithium and are characterised by a high energy density.
Technical Data
| Capacity Nominal 0,2C | 2500mAh |
| Min. capacity | 2460mAh |
| Nominal voltage | 3.6V – 3.7V |
| Charging end voltage | 4.2V ± 0.05V |
| Final discharge voltage | 2,5V |
| Max. Discharge current constant | 20A |
| Max. Discharge current pulse (<1 sec.) | 100A |
| Protection circuit (BMS) | not available |
| Chemical composition | LiNiMnCoO2 |
| Positive pole | flat (Flat Top) |
| Diameter | 18.3 mm ± 0.1 mm |
| Height | 64.85 mm ± 0.15 mm |
| Weight | 45 g ± 1 g |
| Charging method | CC-CV |
| Data sheet | Samsung INR18650-25R |
| Introduction tests | Samsung INR18650-25R |
| Comparison test | Steam batteries |
| Charging current and duration (normal) | 1.2A/3h |
| Charging current and duration (fast) | 4A/1h |
| Operating temperature charging | 0 °C – 45°C |
| Operating temperature discharging | -20 °C – 60°C |
Notes:
A special charger is required for charging lithium ion batteries, which charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.
Furthermore, rechargeable batteries and batteries do not belong in household waste! Please dispose of them as prescribed by law at the municipal collection points or in the [usually green] containers provided by retailers.
