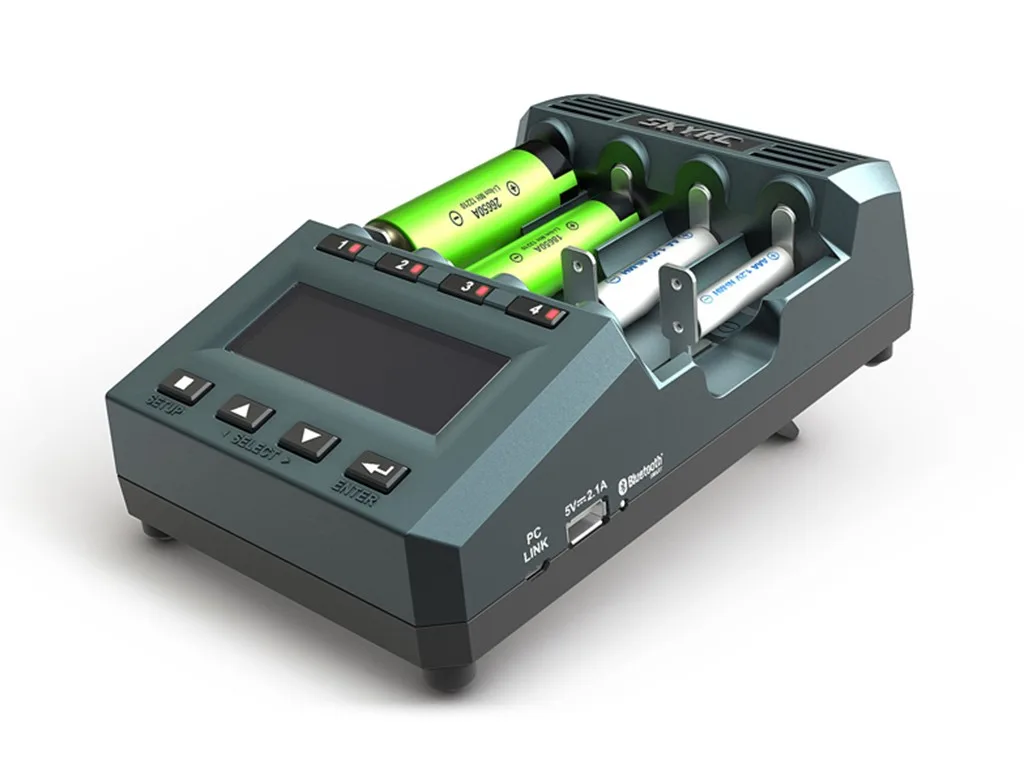

SkyRC MC3000 professional universal analysis charger for round cells.
Latest version with two fans, improved Bluetooth reception and improved battery contacts on the positive terminal.
Software version ≥1.15
Hardware version ≥2.2
The creation of SkyRC’s MC 3000 charger was born out of the desire to finally create a charger that is as versatile, accurate, robust and powerful as SkyRC’s Hobby charger for modellers, but for cylindrical single cells.
No more hassle with battery holders, tricky wiring, clamps or similar do-it-yourself solutions. Due to the many adjustment possibilities, the MC3000 is not suitable for inexperienced users.
Product features:

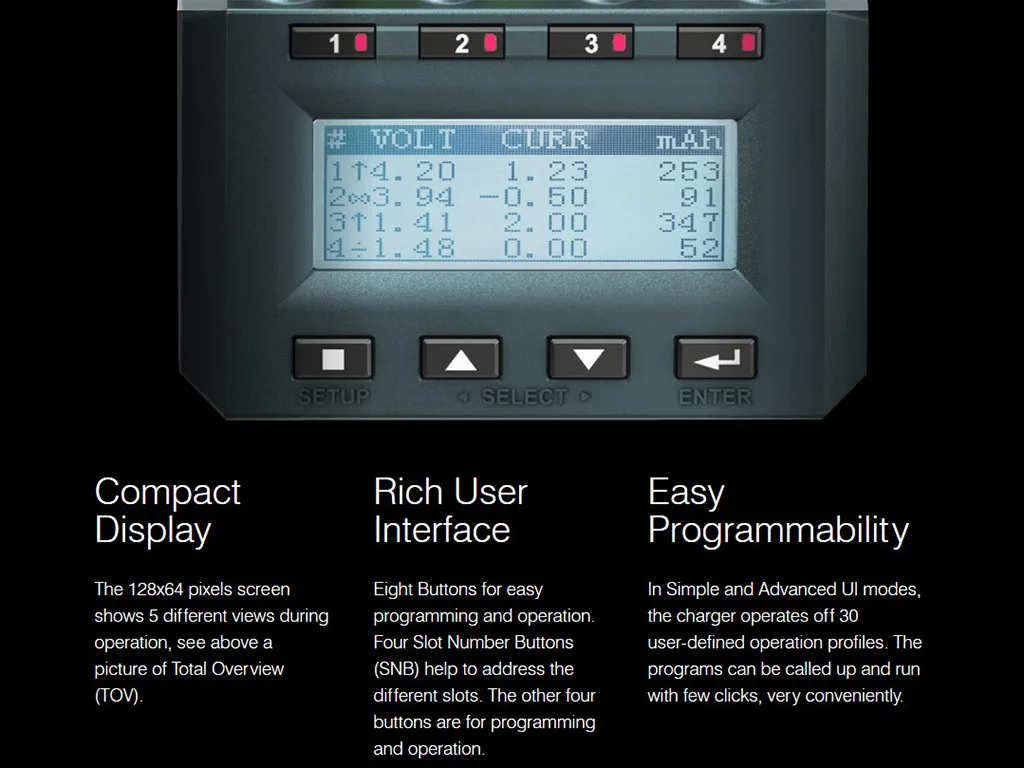

- Graphics-capable matrix display, curve display on the unit & PC.
- USB output (PC interface)
- Smartphone control
- 4 shafts 10330 to 32700, or AAAA to D (32650 and D go only 2 at a time outside)
- All compartments can be controlled individually
- Charging voltage Li-Ion (4.20V ‘& 4.35V), LiFePO (3.6V), CC/CV (adjustable termination)
- NiCd/NiMH/NiZn and Eneloop, dT/dV (incl. trickle trickle charge optional)
- 0.05A to 3A charging with selectable charging termination, 4*2A
- 0.01A to 4x1A or 1x2A discharging with selectable discharge cut-off voltage
- Various cycle/refresh modes
- Storage programme for charge/discharge to selectable storage voltage
- Internal resistance measurement, capacity measurement (mAh and energy Wh) for all programmes
- Charge-discharge curves, data export and remote control on PC via MicroUSB
- Memory locations for preferred settings

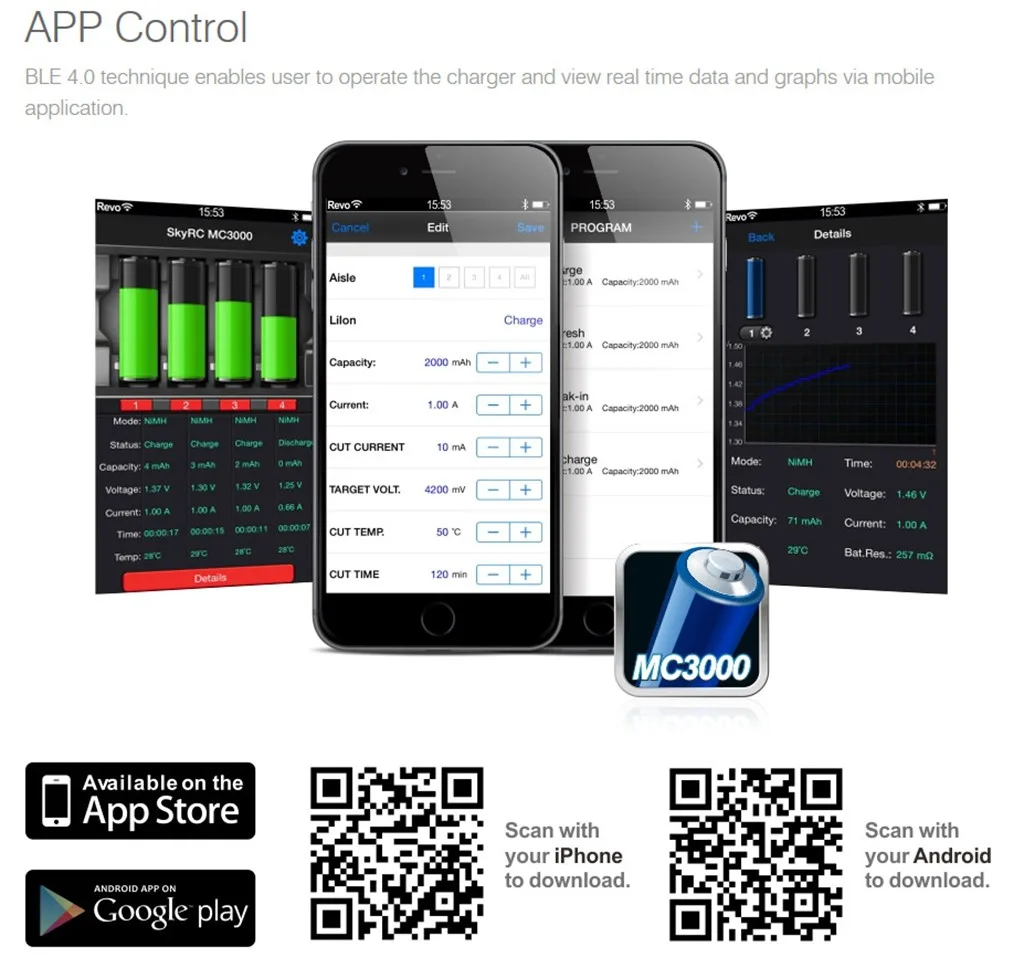

- Remote control via Bluetooth 4.0 with iOS & Android App
- Temperature-controlled fan, adjustable temperature threshold Firmware upgrade via PC USB Powerpack function 5V, 2.1A
Battery type support:
NiMH / NiCd / NiZn / Eneloop / Lithium-Ion / LiFEPo4.35 / LiFePO4
Battery size support:
AAAA, AAA, AA, Sub-C, C, D **, 10340, 10350, 10440, 10500, 12340,
12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16340,
RCR123, 16500, 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500,
18650, 18700, 20700*, 21700*, 22500, 22650, 25500, 26500, 26650, 32600 ** 32650 **
* max. length 72mm – protected version with 75mm does not fit in
** Only 2 cells of this size can be charged at the same time.
Test results and information: LygteInfo (English), SkyRC (English), Mountainprophet (Forum), TFL (Forum), CandlePowerForums.com (recommended by SkyRc) (English)
German manual download:
Scope of delivery:
Charger SkyRC MC3000; 100V – 240V power supply; Instruction manual (German manual can be downloaded with the link above).
- Input power: DC 11-18V/4A
- Charging current: 0.05A – 3.00A
- Discharge current: 0.05A – 2.00A
- Charging power: 50W
- Discharge power: 15W
- Dimensions: 200 mm × 124 mm × 69 mm
- Weight: 600 g (without batteries and mains cable)
