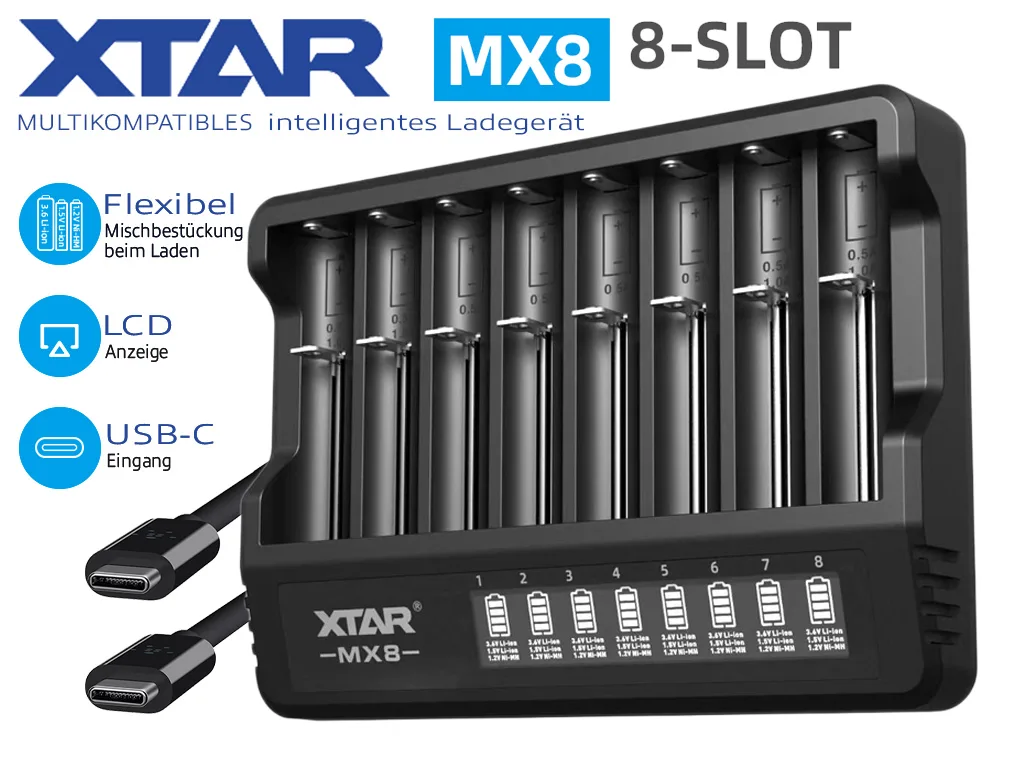

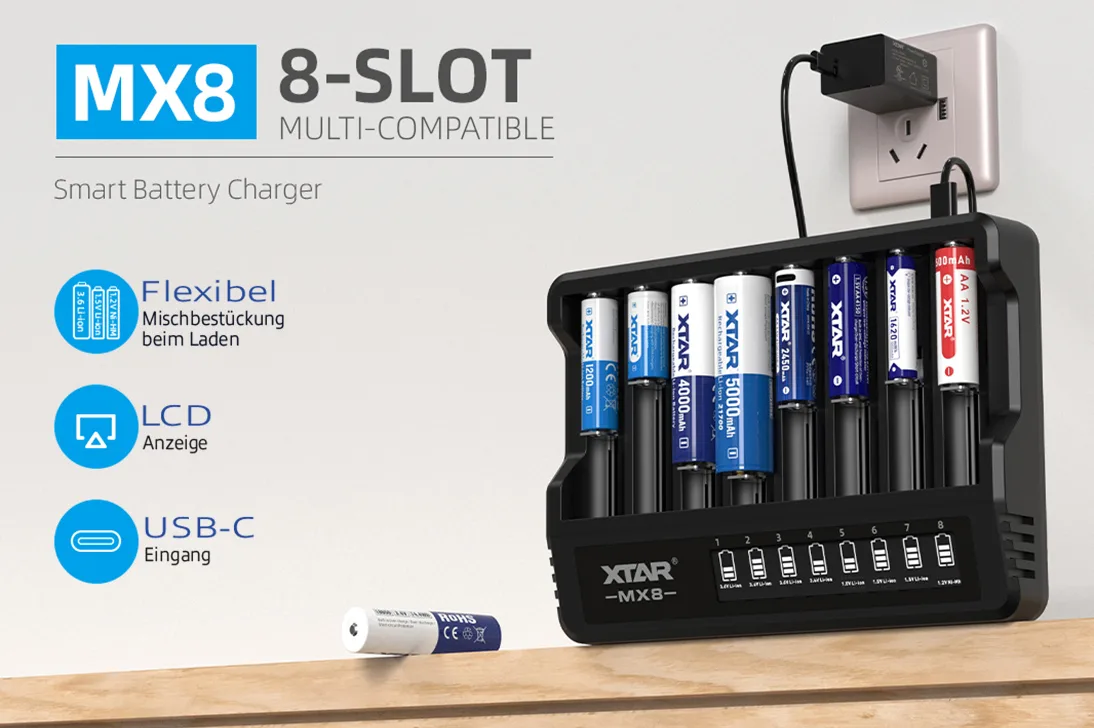

The XTAR MX8 with 8 independently functioning charging bays and high battery compatibility is an intelligent all-in-one charger. Thanks to an LCD display, USB-C connection, intelligent automatic charging, 0V activation and comprehensive safety functions, it offers an efficient, safe and flexible charging solution for various batteries.
Intelligent 8-slot charger for 1.5 V Li-Ion, 1.2 V Ni-MH & 3.6 / 3.7 V Li-Ion batteries
The XTAR MX8 automatically recognises the battery type and charge status and adjusts the charging process accordingly. Several integrated protection mechanisms and the use of high-quality materials ensure safe and reliable operation in daily use.

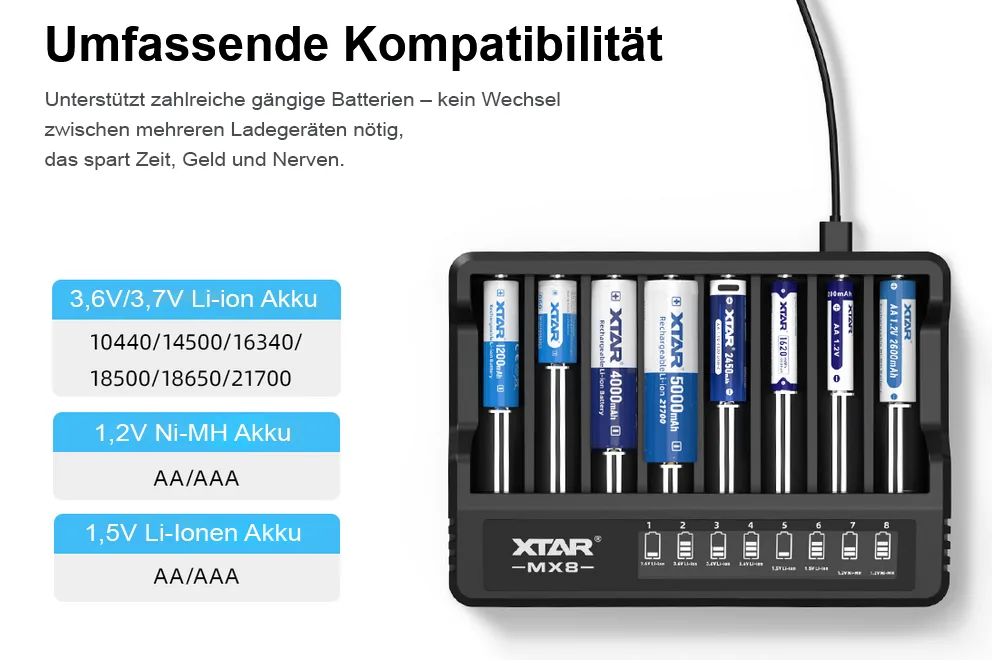

The following lithium-ion battery types can be charged with the Xtar MX8:
Li-ion IMR, INR, ICR(1.5V; 3.6/3.7V nominal voltage) : AA, AAA, 10440, 10500, 12340, 12500, 12650, 13450, 13500, 13650, 14350, 14430, 14500, 14650, 16500, 16340(RCR123), 16650, 17350, 17500, 17650, 17670, 18350, 18490, 18500, 18650, 20700, 21700, 22500, 22650
All batteries listed can also be recharged in a protected version (PCB/BMS).
26650, 26700 and 26800 batteries up to 81 mm in length can be charged, but require a free neighbouring slot. Maximum of 4 batteries at the same time.
Sizes not listed can also be charged as long as they are not thicker than 22 mm and longer than 81 mm.
The following NiMH battery types can be charged with the Xtar MX8:
NiMH/NiCD (1.2 V nominal voltage) AAA, AA
Sizes not listed can also be charged as long as they are not thicker than 22 mm and longer than 81 mm.
Advantages & features of the XTAR MX8 charger:
- Supports various battery types: 1.5 V Li-Ion (AA/AAA), 3.6 V / 3.7 V Li-Ion and 1.2 V Ni-MH
- Automatic stop when timeout occurs
- Unique charging technologyfor different rechargeable batteries
CVSA technology for Ni-MH rechargeable batteries
3-stage charging for lithium-ion rechargeable batteries - Reactivation of deeply discharged batteries

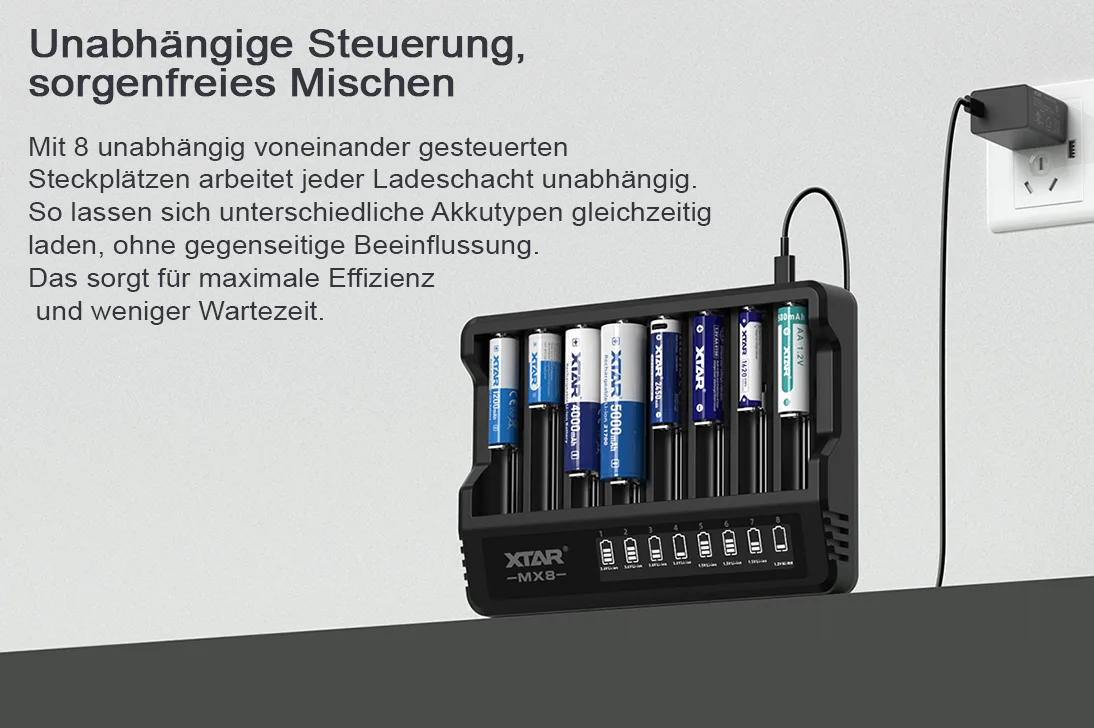

- 8 independently operating charging bays
- Simultaneous charging of different battery types possible without pairing constraints
- Automatic detection of battery type and charge status
- Intelligent selection of the appropriate charging mode for each slot

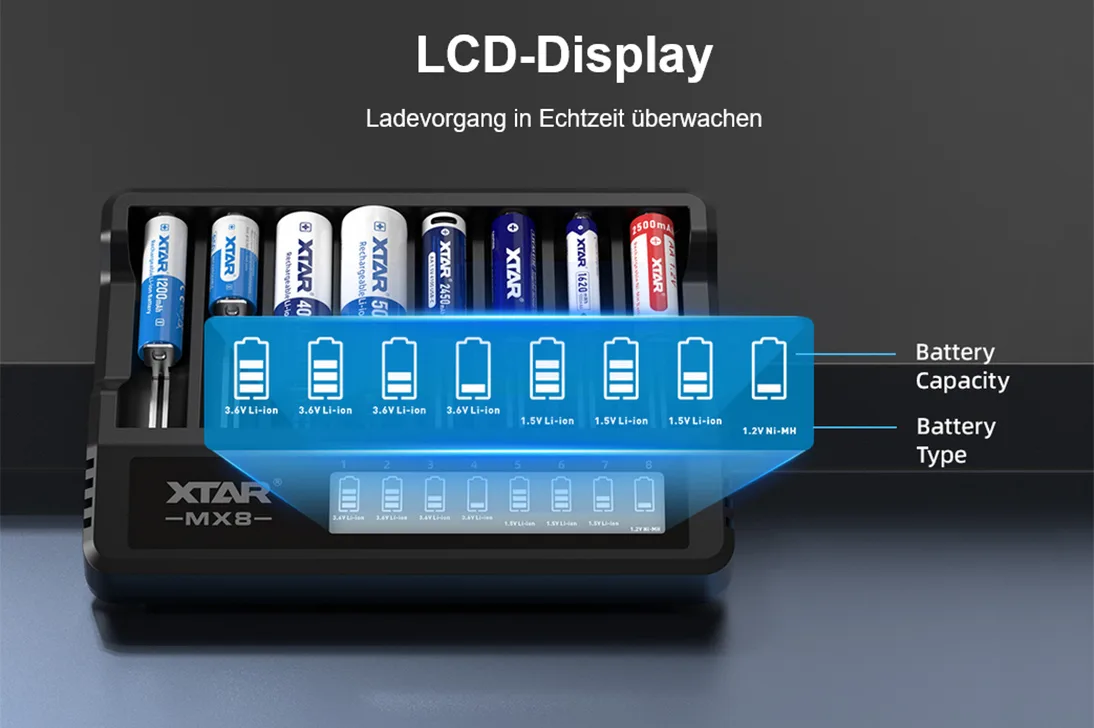

- LCD display to show charge status, voltage, charging current and charging time per slot
- USB-C power supply for flexible use with mains adapter or power bank

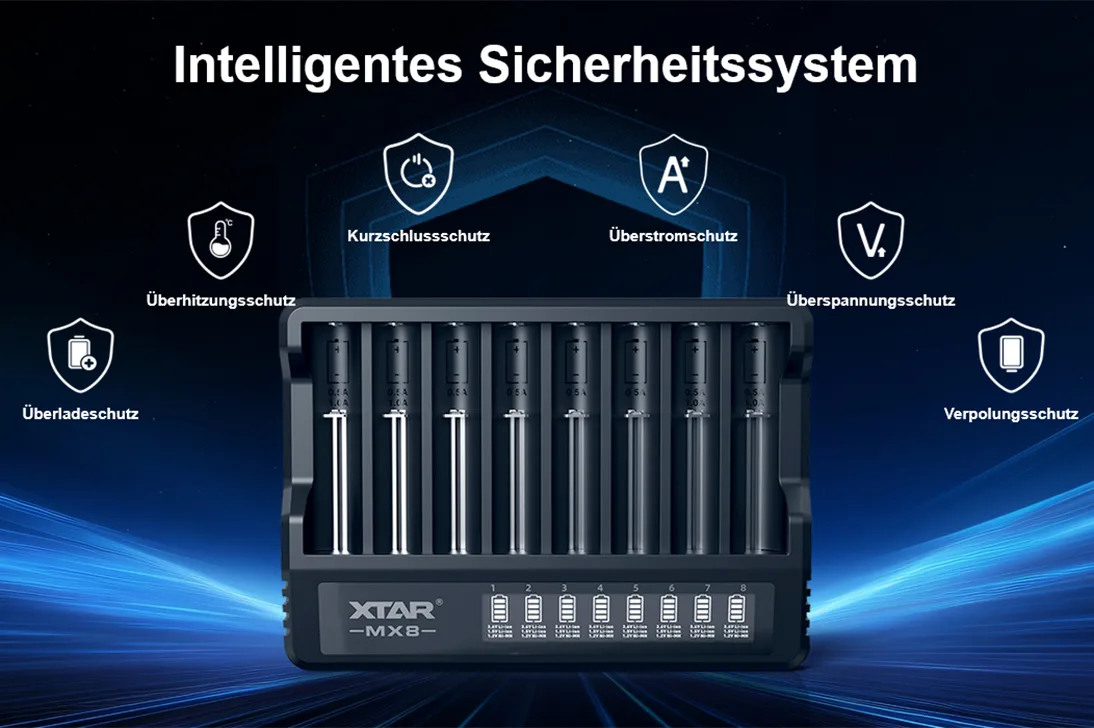

- Multiple integrated protection mechanisms (e.g. overcharging, overcurrent, short circuit, overtemperature)
- Gentle charging process to support the battery life
- No need to insert the batteriesin pairs
- Suitable for many common battery formats and voltages
- Clear operation and clear status display for each charging slot
- Robust workmanship and reliable operation in daily use
Scope of delivery:

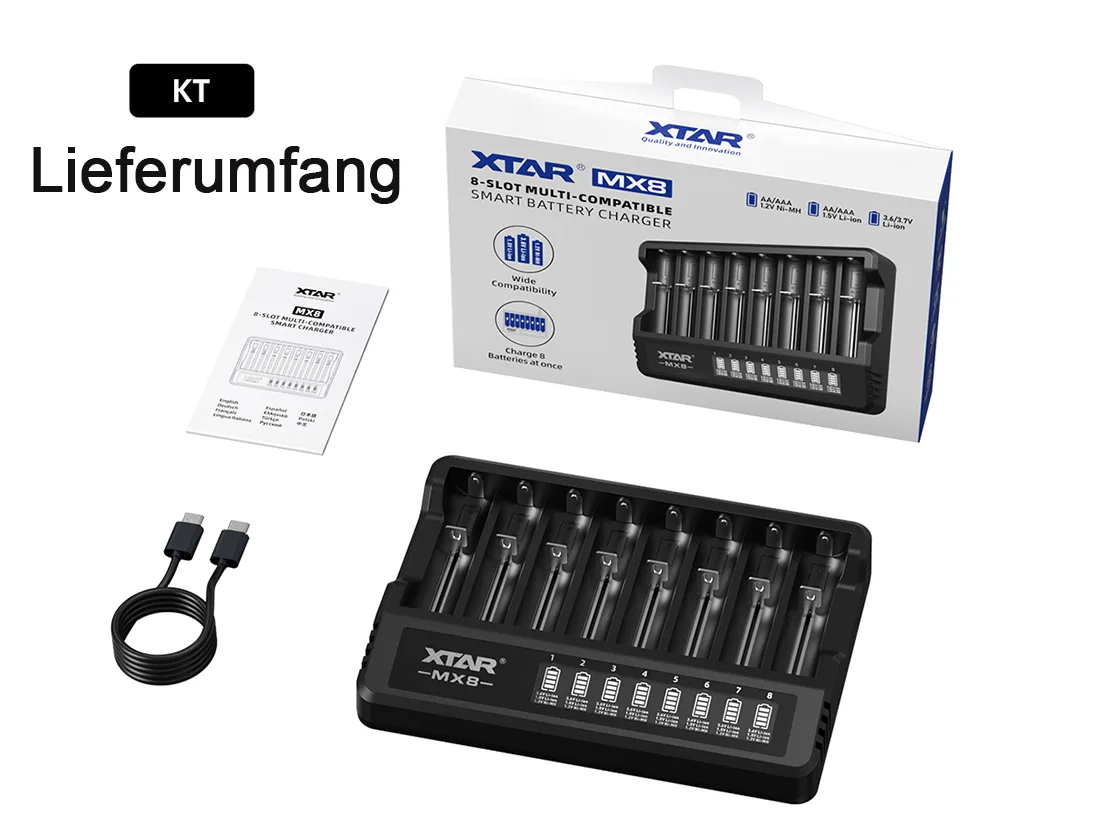

SET MX8 Pro charger, USB-C to USB-C cable, operating instructions.

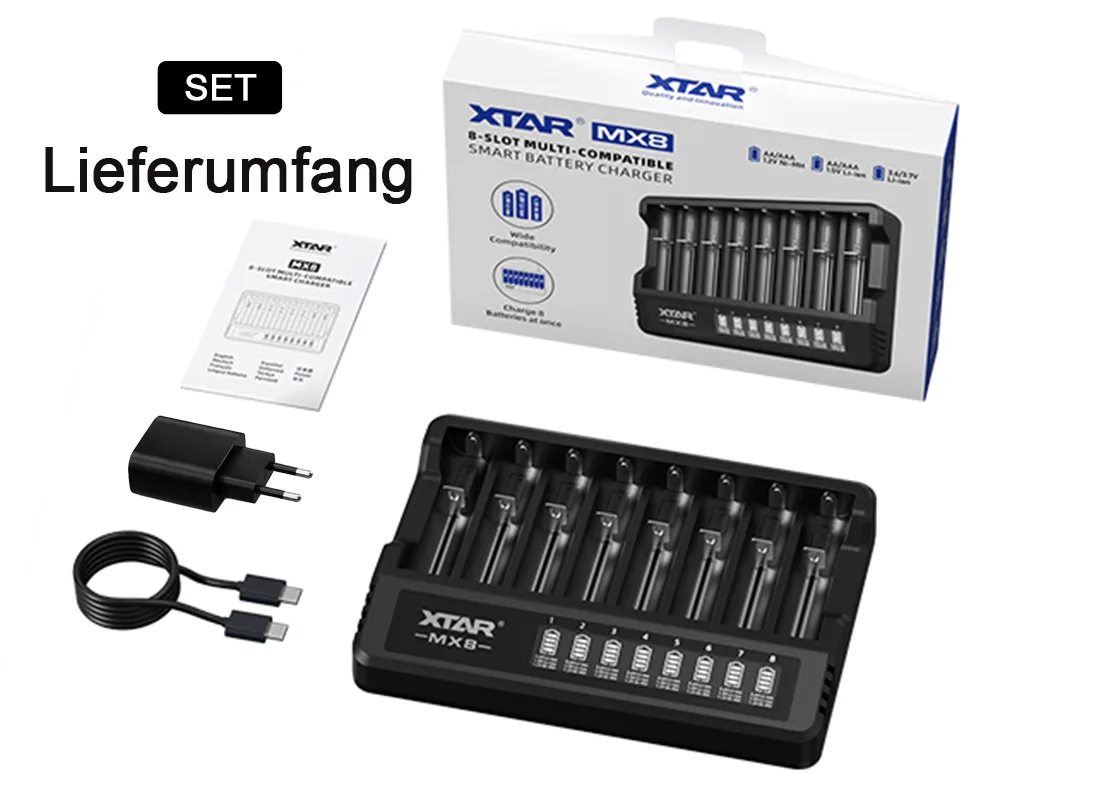

KIT MX8 Pro charger, USB-C to USB-C cable, 20W USB-C power adapter, operating instructions.
Technical Data
| Model | XTAR MX8 |
| Bays | 8 (independently monitored) |
| Supported chemistries / voltages | 3.6/3.7 V Li-ion | 1.5 V Li-ion | 1.2 V Ni-MH |
| Input | PD (12 V ⎓ 1.67 A) | QC (9 V ⎓ 2 A) |
| Constant charging current | 3.6/3.7 V Li-ion: 1 A × 4 / 0.5 A × 8 1.5 V Li-ion: 0.5 A × 8 1.2 V Ni-MH: 0.5 A × 8 |
| Cut-off voltage (cut-off) | 3.6/3.7 V Li-ion: 4.20 ± 0.05 V 1.5 V Li-ion: N/A (according to manufacturer’s specification) 1.2 V Ni-MH: 1.45 ± 0.1 V |
| Charge cut-off current (cut-off) | 3.6/3.7 V Li-ion: ≤ 150 mA 1.5 V Li-ion: 50 mA 1.2 V Ni-MH: N/A (according to manufacturer’s specification) |
| Auto-stop (timeout) | Automatic stop after 16 hours (per slot) |
| 0V activation | Automatic activation of deeply discharged batteries (according to manufacturer’s specifications) |
| Operating temperature | 0 – 40 °C |
| Dimensions | L 200 × W 142 × H 31.5 mm |
| Weight | approx. 314 g |
| Display | LCD display (real-time status display) |
| Safety functions | Overcharge, overvoltage, overcurrent, overtemperature, short circuit, reverse polarity (according to manufacturer’s specifications) |
| Housing material | Flame-retardant materials (as specified by the manufacturer) |
| Variants / sets | MX8 (without power supply unit) and sets with PD20 power supply unit (e.g. EU/US/UK/AU/JP) |
