Xtar VC2 – Charger for Li-Ion batteries incl. USB cable
The XTAR VC2 is a professional Lithium-Ion battery charger with two charging bays for operation on any USB port. Compatible with all USB mains and car adapters, input voltage is intelligently identified and adjusted.

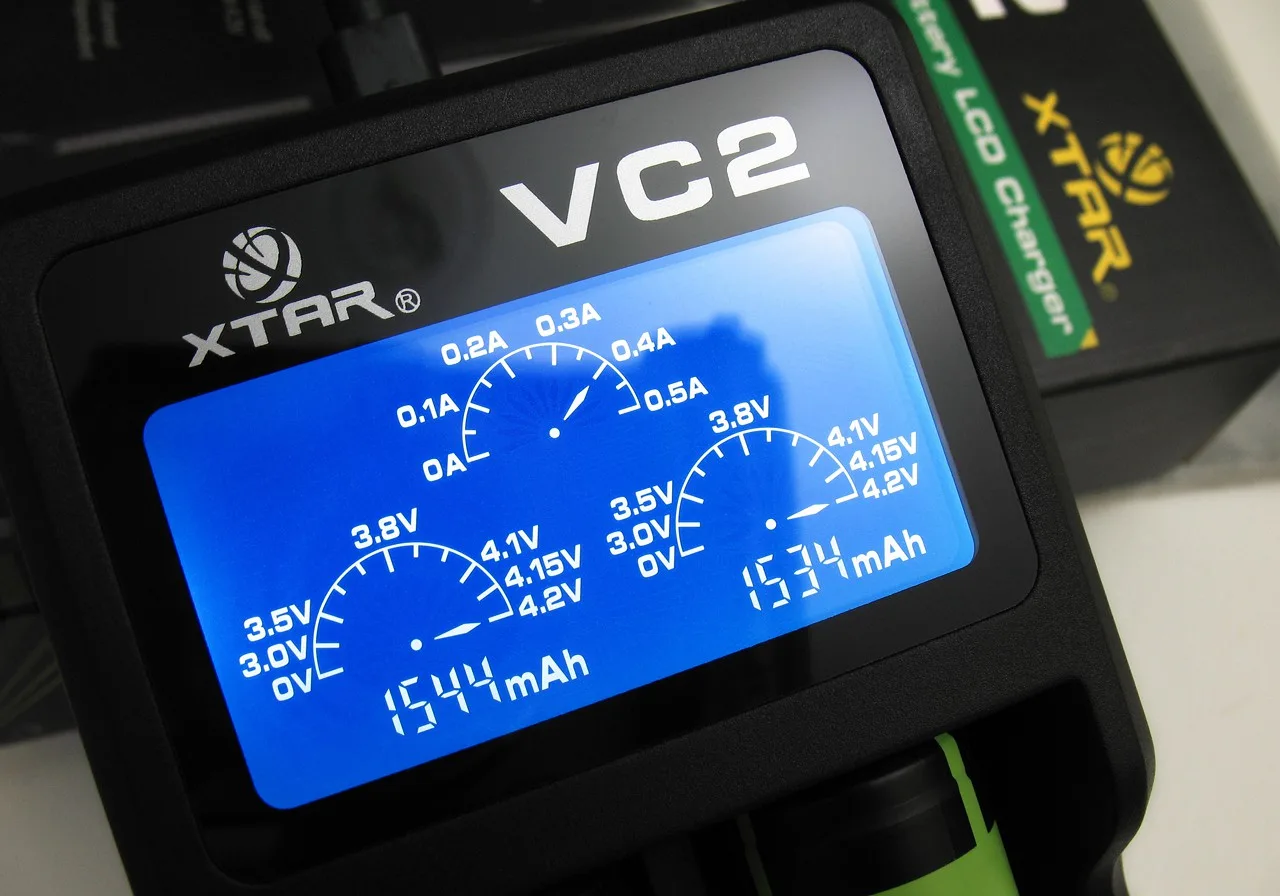

The large display shows: charging current, battery voltage and the charged capacity in mAh of both battery compartments.
The following battery types can be charged: 10440 / 14500 / 14650 / 16340 / 17500 / 17670 / 18350 / 18490 / 18500 / 18650 / 18700 / 22650 / 25500 / 26650 / 20700 / 21700
3,6V/3,7V Lithium-Ion batteries (ATTENTION: 20700/21700 only in unprotected version, up to max.71mm length)
Product information:
- Xtar VC2 charger has two intelligent charging bays that work independently of each other.
- LCD display for real-time, display of charging voltage, battery status and charged capacity in mAh of both battery bays
- The Xtar VC2 can be operated with any USB adapter
- Soft-start function avoids battery damage caused by power surge
- IC temperature monitoring to prevent overheating
- Reverse polarity and short circuit protection
- Three-stage charging algorithm
- Charging methods TC, CC CV,
- Compact size
Scope of delivery: Xtar VC2 Charger, USB Cable, Manual German, English
Technical Data
| Input | 5.0V DC/1.0A |
| Charging currents | max. 500mA per slot |
| Termination (TC) at 0.5A | = 80mA |
| Final charging voltage | 4,2V |
| Operating temperature | 0 °C – 40 °C |
| Net weight | 109 g |
| Dimensions LxWxH in mm | 131 x 66 x 33 |
| Manufacturer | XTAR |
Notes:
The above parameters are laboratory tested. Approximate values may vary between charger, batteries and environment.
