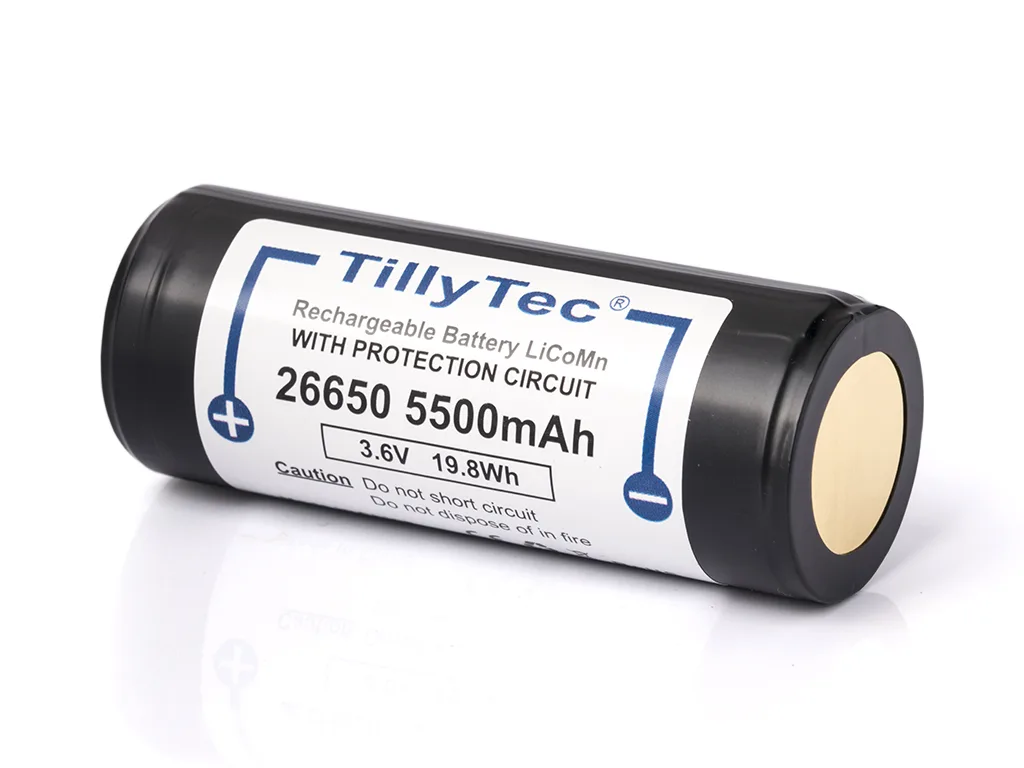

High-quality cell with long service life and high cycle stability. Seiko (Made in Japan). Protection/PCB with short circuit, overcharge and deep discharge protection. Developed for torches, LEDs and battery carriers.
Please note that removing or damaging the protective electronics (PCB) may result in a short circuit, fire or explosion.
Lithium-ion batteries are thermally stable and are not subject to memory effect.
They work on the basis of lithium and are characterised by a high energy density.
Technical Data
| Cell | Keeppower 26650 |
| Capacity | 5500mAh |
| Min. capacity | 5400mAh |
| Rated voltage | 3.6V – 3.7V |
| Charging end voltage | 4.2V ± 0.05V |
| Final discharge voltage | 2,75V |
| Positive terminal | raised (button top) |
| Max. Discharge current (continuous load) | 10A |
| Chemistry | LiMgCo |
| Protective circuit PCB | Yes (10A) |
| Charging method | CC-CV |
| Diameter | 26.50 mm ± 0.15 mm |
| Height | 69.9 mm ± 0.25 mm |
| Weight | 93.5 g ± 1 g |
| MSDS | MSDS P2655C |
| UN38.3 | UN38.3 |
| Safty Transport og Goods | PCB Li-Ion P2655C |
| Charging current Normal | 2000mA/4h |
| Charging current fast | 3500mA/3,5h |
| Charging operating temperature | 0 °C – 45 °C |
| Operating temperature discharging | -20 °C – 60 °C |
Notes:
A special charger is required for charging lithium-ion batteries, which charges the batteries according to a special charging procedure. (CCCV = constant current, constant voltage.) The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approx. 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium ion chargers may be used for charging. However, the cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.
Furthermore, rechargeable batteries and batteries do not belong in household waste! Please dispose of them as prescribed by law at the municipal collection points or in the [usually green] containers provided by retailers.
